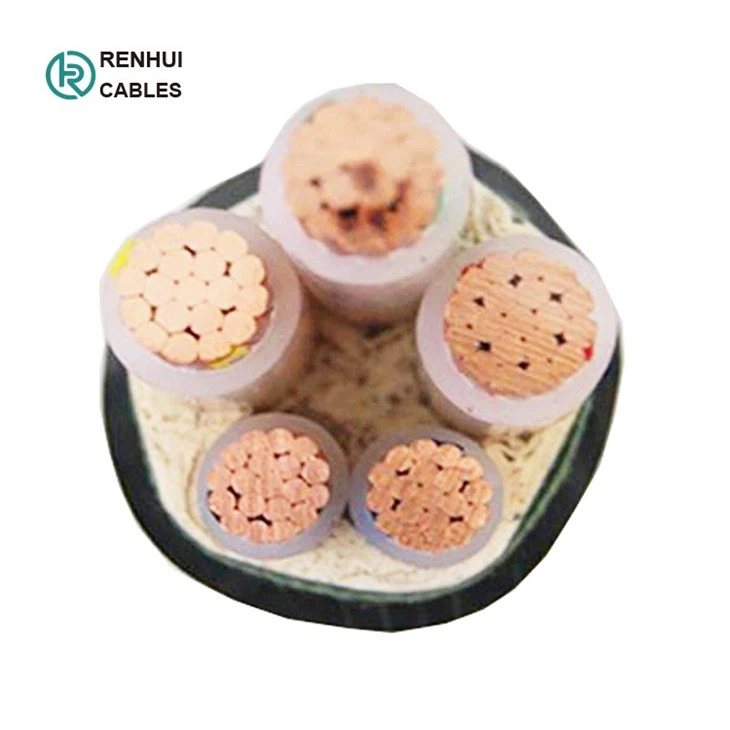

U-1000 R2V
1. Feidhmchlár :U-1000 R2V
Is féidir Cábla 0.6/1KV, U-1000 R2V, CU/XLPE/PVC a úsáid i ngach suiteáil chumhachta ísealvoltais.
Cuirtear cáblaí ilchórais in oiriúint do shuiteálacha cianrialaithe agus teilea-rialaithe.
 |
 |
 |
2. Tógáil: U-1000 R2V
-Seoltóirí
Seoltóir copar soladach Aicme 1, Seoltóir Copar Snáithe Aicme 2 go IEC 60228, BS EN 60228.
-Insliú
Ábhar XLPE
-Cód Dathanna
Cód Datha (1):
1 Croílár: Trédhearcach, Dearg nó Dubh
2 Chroí: Dearg, Dubh
3 Chroí: Dearg, Buí, Gorm
4 Chroí: Dearg, Buí, Gorm, Dubh
5 Chroí: Dearg, Buí, Gorm, Dubh, Glas
Os cionn 5 Chroí: Croí Dubha le huimhreacha Bán
Cód Dathanna (2):
1 Croílár: Trédhearcach, Donn nó Gorm
2 Chroí: Donn nó Gorm
3 Chroí: Donn, Dubh, Liath
4 Chroí: Gorm, Donn, Dubh, Liath
5 Chroí: Glas/Buí, Gorm, Donn, Dubh, Liath
Os cionn 5 Chroí: Croí Dubha le huimhreacha Bán
-Drúcht Amuigh:PVC easbhrúite.
 |
 |
 |
3. Caighdeán: NF C32-321
Deatach íseal (acc. GA 61034-2)
Retardant lasair Acc. GA 50265-2-1
4. Paraiméadair Cábla: U-1000 R2V
|
Croí aonair |
|
|||
|
Trasghearradh Ainmniúil |
Trastomhas Seoltóra (Tuairim.) |
Tiús Inslithe Ainmniúil |
Tiús Sheath Ainmniúil |
Trastomhas foriomlán (Thart ar.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
1x1.5 |
1.4 |
0.7 |
1.4 |
5.6 |
|
1x2.5 |
1.8 |
0.7 |
1.4 |
6.0 |
|
1x4 |
2.3 |
0.7 |
1.4 |
6.5 |
|
1x6 |
2.8 |
0.7 |
1.4 |
7.0 |
|
1x10 |
3.6 |
0.7 |
1.4 |
7.8 |
|
1x16 |
4.5 |
0.7 |
1.4 |
8.7 |
|
1x25 |
5.6 |
0.9 |
1.4 |
10.2 |
|
1x35 |
6.7 |
0.9 |
1.4 |
11.3 |
|
1x50 |
8.0 |
1 |
1.4 |
12.8 |
|
1x70 |
9.4 |
1.1 |
1.4 |
14.4 |
|
1x95 |
11.0 |
1.1 |
1.5 |
16.1 |
|
1x120 |
12.4 |
1.2 |
1.5 |
17.8 |
|
1x150 |
13.8 |
1.4 |
1.6 |
19.8 |
|
1x185 |
15.3 |
1.6 |
1.6 |
21.8 |
|
1x240 |
17.5 |
1.7 |
1.7 |
24.4 |
|
1x300 |
19.5 |
1.8 |
1.8 |
26.7 |
|
1x400 |
22.6 |
2 |
1.9 |
30.5 |
|
1x500 |
25.2 |
2.2 |
2.0 |
33.7 |
|
1x630 |
28.3 |
2.4 |
2.2 |
37.4 |
|
1x800 |
31.9 |
2.6 |
2.3 |
41.7 |
|
1x1000 |
35.7 |
2.8 |
2.4 |
46.2 |
|
Dhá chroí |
|
|||
|
Trasghearradh Ainmniúil |
Trastomhas Seoltóra (Tuairim.) |
Tiús Inslithe Ainmniúil |
Tiús Sheath Ainmniúil |
Trastomhas foriomlán (Thart ar.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
2x1.5 |
1.4 |
0.7 |
1.8 |
9.2 |
|
2x2.5 |
1.8 |
0.7 |
1.8 |
10.0 |
|
2x4 |
2.3 |
0.7 |
1.8 |
11.0 |
|
2x6 |
2.8 |
0.7 |
1.8 |
12.0 |
|
2x10 |
3.6 |
0.7 |
1.8 |
13.6 |
|
2x16 |
4.5 |
0.7 |
1.8 |
15.4 |
|
2x25 |
5.6 |
0.9 |
1.8 |
18.4 |
|
2x35 |
6.7 |
0.9 |
1.8 |
20.6 |
|
2x50 |
8.0 |
1 |
1.8 |
23.6 |
|
2x70 |
9.4 |
1.1 |
1.8 |
26.8 |
|
2x95 |
11.0 |
1.1 |
1.9 |
30.2 |
|
2x120 |
12.4 |
1.2 |
2.0 |
33.7 |
|
2x150 |
13.8 |
1.4 |
2.2 |
37.5 |
|
2x185 |
15.3 |
1.6 |
2.3 |
41.6 |
|
2x240 |
17.5 |
1.7 |
2.5 |
46.7 |
|
2x300 |
19.5 |
1.8 |
2.6 |
51.4 |
|
2x400 |
22.6 |
2 |
2.9 |
58.9 |
|
Trí cores |
|
|||
|
Trasghearradh Ainmniúil |
Trastomhas Seoltóra (Tuairim.) |
Tiús Inslithe Ainmniúil |
Tiús Sheath Ainmniúil |
Trastomhas foriomlán (Thart ar.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
3x1.5 |
1.4 |
0.7 |
1.8 |
9.6 |
|
3x2.5 |
1.8 |
0.7 |
1.8 |
10.5 |
|
3x4 |
2.3 |
0.7 |
1.8 |
11.6 |
|
3x6 |
2.8 |
0.7 |
1.8 |
12.6 |
|
3x10 |
3.6 |
0.7 |
1.8 |
14.4 |
|
3x16 |
4.5 |
0.7 |
1.8 |
16.3 |
|
3x25 |
5.6 |
0.9 |
1.8 |
19.5 |
|
3x35 |
6.7 |
0.9 |
1.8 |
21.9 |
|
3x50 |
8.0 |
1 |
1.8 |
25.1 |
|
3x70 |
9.4 |
1.1 |
1.9 |
28.7 |
|
3x95 |
11.0 |
1.1 |
2.0 |
32.4 |
|
3x120 |
12.4 |
1.2 |
2.1 |
36.1 |
|
3x150 |
13.8 |
1.4 |
2.3 |
40.3 |
|
3x185 |
15.3 |
1.6 |
2.4 |
44.6 |
|
3x240 |
17.5 |
1.7 |
2.6 |
50.2 |
|
3x300 |
19.5 |
1.8 |
2.7 |
55.2 |
|
3x400 |
22.6 |
2 |
3.0 |
63.3 |
|
Ceithre cores |
|
|||
|
Trasghearradh Ainmniúil |
Trastomhas Seoltóra (Tuairim.) |
Tiús Inslithe Ainmniúil |
Tiús Sheath Ainmniúil |
Trastomhas foriomlán (Thart ar.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
4x1.5 |
1.4 |
0.7 |
1.8 |
10.4 |
|
4x2.5 |
1.8 |
0.7 |
1.8 |
11.3 |
|
4x4 |
2.3 |
0.7 |
1.8 |
12.5 |
|
4x6 |
2.8 |
0.7 |
1.8 |
13.7 |
|
4x10 |
3.6 |
0.7 |
1.8 |
15.7 |
|
4x16 |
4.5 |
0.7 |
1.8 |
17.8 |
|
4x25 |
5.6 |
0.9 |
1.8 |
21.5 |
|
4x35 |
6.7 |
0.9 |
1.8 |
24.1 |
|
4x50 |
8.0 |
1 |
1.8 |
27.8 |
|
4x70 |
9.4 |
1.1 |
2.0 |
32.0 |
|
4x95 |
11.0 |
1.1 |
2.1 |
36.1 |
|
4x120 |
12.4 |
1.2 |
2.3 |
40.2 |
|
4x150 |
13.8 |
1.4 |
2.4 |
44.9 |
|
4x185 |
15.3 |
1.6 |
2.6 |
49.8 |
|
4x240 |
17.5 |
1.7 |
2.8 |
56.0 |
|
4x300 |
19.5 |
1.8 |
3.0 |
61.7 |
|
4x400 |
22.6 |
2 |
3.2 |
70.7 |
|
Croí Il |
|
|||
|
Trasghearradh Ainmniúil |
Trastomhas Seoltóra (Tuairim.) |
Tiús Inslithe Ainmniúil |
Tiús Sheath Ainmniúil |
Trastomhas foriomlán (Thart ar.) |
|
mm^2 |
mm |
mm |
mm |
mm |
|
5x1.5 |
1.4 |
0.7 |
1.8 |
11.2 |
|
7x1.5 |
1.4 |
0.7 |
1.8 |
12.0 |
|
10x1.5 |
1.4 |
0.7 |
1.8 |
14.8 |
|
12x1.5 |
1.4 |
0.7 |
1.8 |
15.2 |
|
14x1.5 |
1.4 |
0.7 |
1.8 |
16.0 |
|
19x1.5 |
1.4 |
0.7 |
1.8 |
17.6 |
|
21x1.5 |
1.4 |
0.7 |
1.8 |
18.4 |
|
24x1.5 |
1.4 |
0.7 |
1.8 |
20.4 |
|
30x1.5 |
1.4 |
0.7 |
1.8 |
21.6 |
|
40x1.5 |
1.4 |
0.7 |
1.8 |
26.0 |
|
48x1.5 |
1.4 |
0.7 |
1.8 |
26.4 |
|
61x1.5 |
1.4 |
0.7 |
1.9 |
29.0 |
|
5x2.5 |
1.8 |
0.7 |
1.8 |
12.2 |
|
7x2.5 |
1.8 |
0.7 |
1.8 |
13.2 |
|
10x2.5 |
1.8 |
0.7 |
1.8 |
16.4 |
|
12x2.5 |
1.8 |
0.7 |
1.8 |
16.9 |
|
14x2.5 |
1.8 |
0.7 |
1.8 |
17.7 |
|
19x2.5 |
1.8 |
0.7 |
1.8 |
19.6 |
|
21x2.5 |
1.8 |
0.7 |
1.8 |
20.6 |
|
24x2.5 |
1.8 |
0.7 |
1.8 |
22.8 |
|
30x2.5 |
1.8 |
0.7 |
1.8 |
24.1 |
|
40x2.5 |
1.8 |
0.7 |
1.9 |
29.4 |
|
48x2.5 |
1.8 |
0.7 |
1.9 |
29.9 |
|
61x2.5 |
1.8 |
0.7 |
2.0 |
32.8 |
5.Package: Easpórtáil drumaí adhmaid.
 |
 |
